Uses and In firefighting operations, there are many cases where different tools with different uses and demands are needs at the same time. It is very important to combine different situations along with the measurement of inter-pathway pressure.

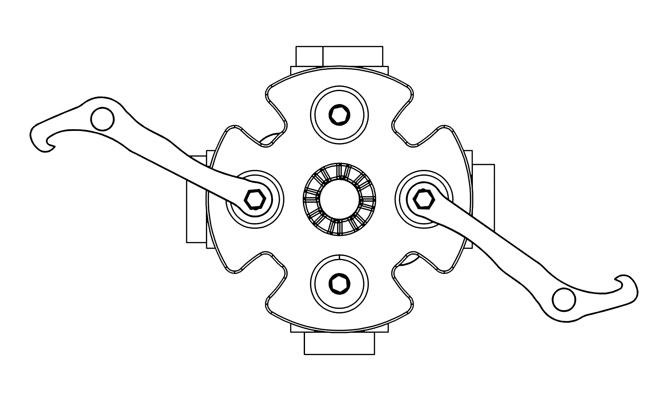

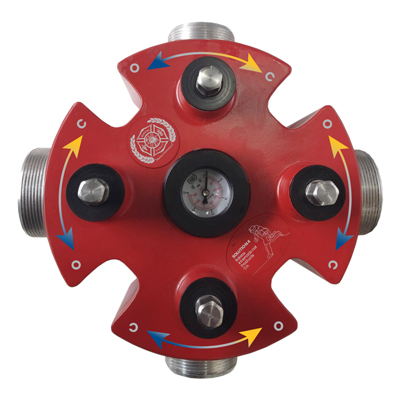

Solution 4 has the ability to collect and divide simultaneously in four directions. The fact that one or more suppliers can support one or more consumers in different directions at the same time makes the device possible for the firefighters to operate even in the opposite direction of the consumer or supplier.
Solution 4 creates exactly the same possibility. This device, which is compatible with BS and Storz standards, helps firefighters to extinguish fire even in two or three different directions and in 360° with different sizes of connections. Solution 4 tested in 60 barg and able to operate on 25 barg and below pressures.

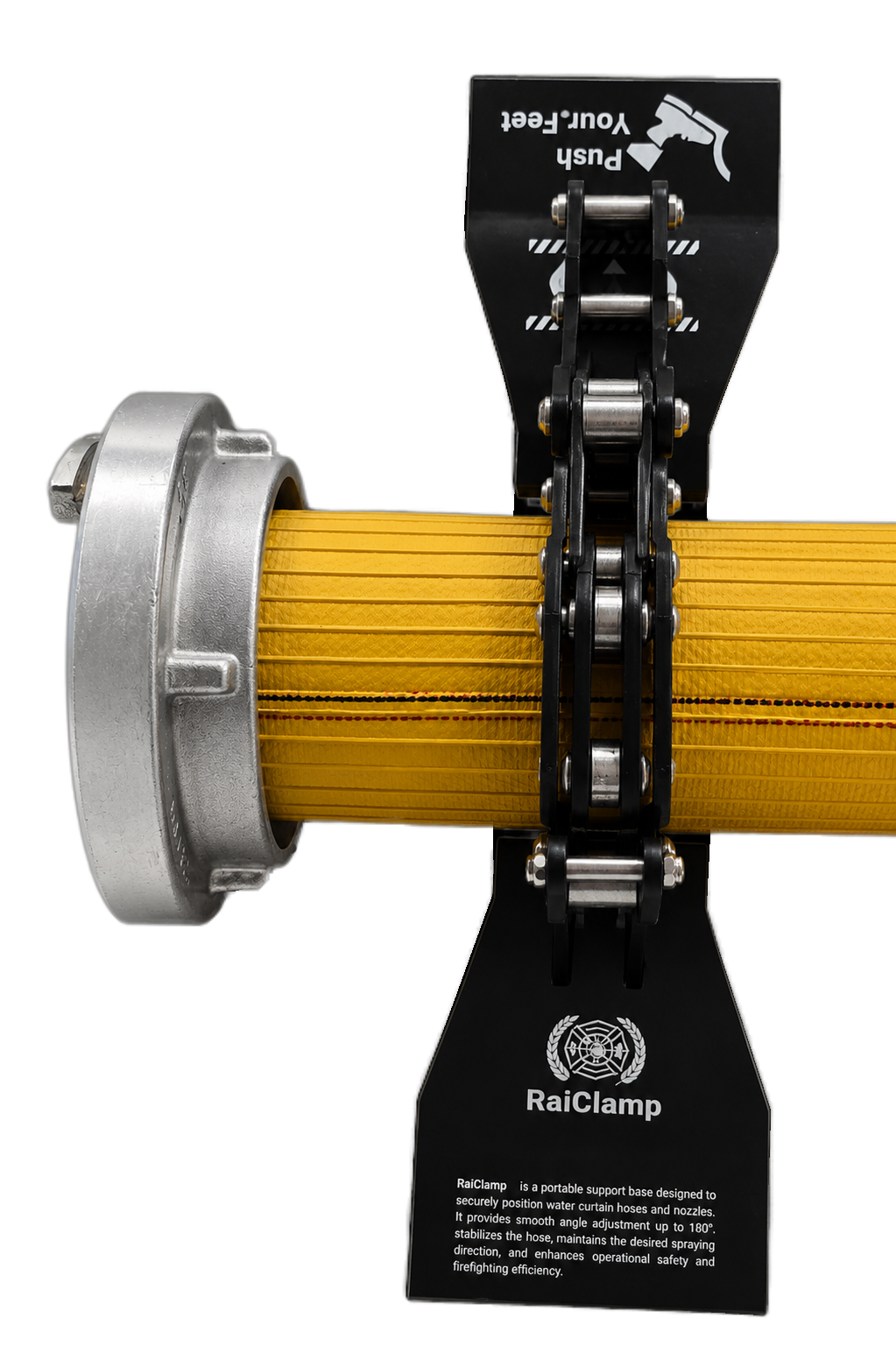

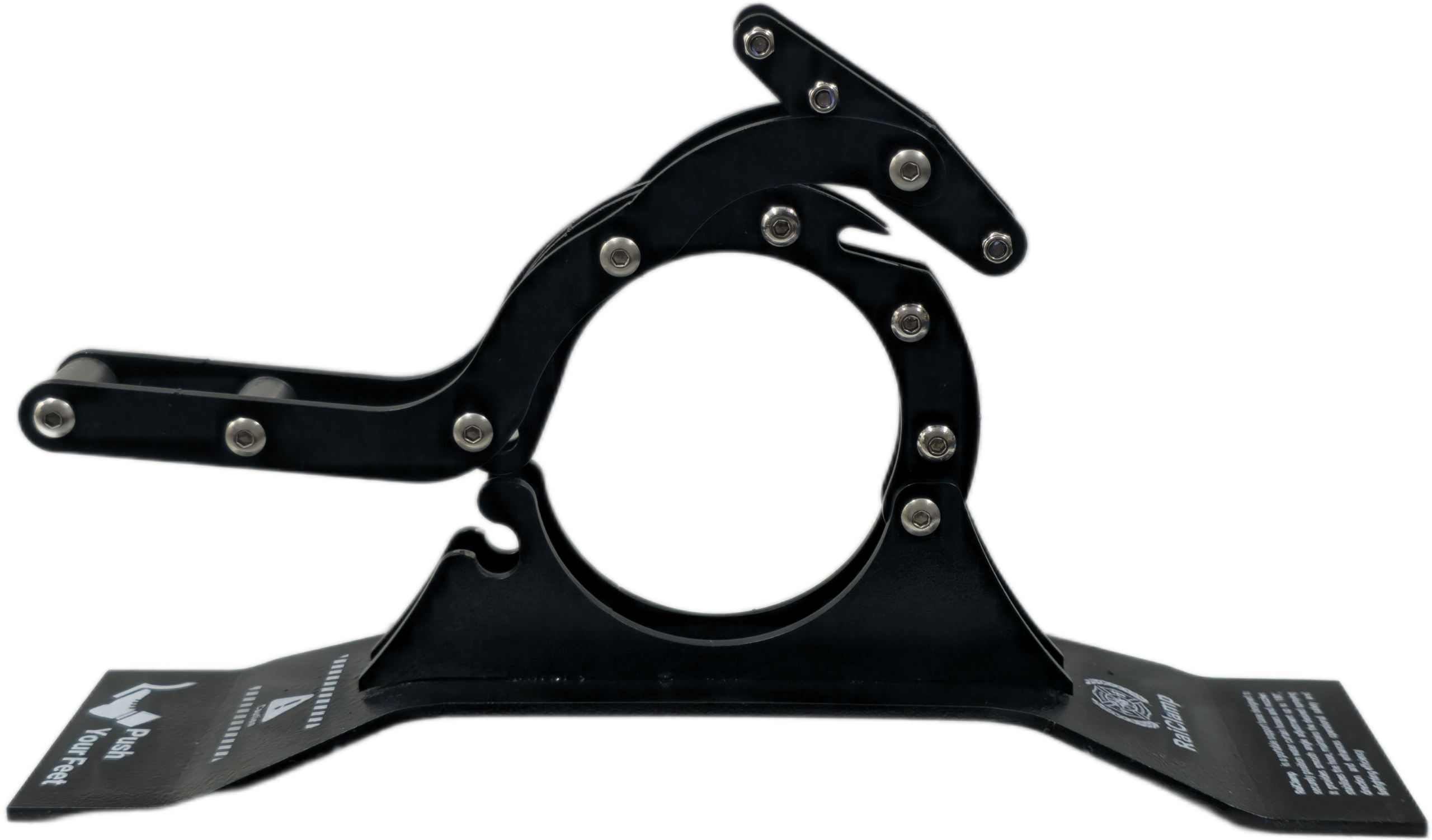

RaiClamp™ is a portable hose stabilizing clamp engineered to securely hold and stabilize water curtain hoses during firefighting operations. Compatible with RaiRain™ as well as many other water curtain hose systems, it prevents unwanted hose rotation while maintaining the desired spray direction throughout operation. The innovative locking mechanism allows firefighters to quickly secure the hose without tools and precisely adjust the spray angle from 0° to 180°, providing maximum flexibility for creating effective water curtains in hazardous environments. Designed to accommodate various hose wall thicknesses, RaiClamp delivers reliable holding performance while preserving hose integrity. Its robust steel construction with a durable electrostatic powder-coated finish ensures long-term performance in demanding industrial and emergency conditions. Whether used for hazardous material incidents, radiant heat protection, exposure defense, or emergency scene control, RaiClamp enhances operational safety, improves deployment efficiency, and provides firefighters with greater control over water curtain positioning.
RaiArc™ is a 2½” reaction force control device designed to be installed between a compatible firefighting nozzle and hose connection. It is engineered to help reduce the perceived reaction force generated during high flow firefighting operations, making the nozzle easier to control and handle. During high flow discharge, the reaction force generated by the water stream can place significant physical demand on firefighters. RaiArc™ is designed to modify the flow path and reaction characteristics of the assembly, helping distribute the resulting forces more effectively and providing a more controlled operating feel. With a 60 mm internal flow path and a 2½” connection configuration, compatible with both BS and Storz standards, RaiArc™ is designed for high flow firefighting applications while maintaining a practical and robust form factor. RaiArc™ can be used with compatible 2½” firefighting nozzles, including RAIXAX configurations such as RaiStorm™, providing an additional level of operator control during high flow operations.
