Powered by Aqua Saver™ Technology
More Water on Target.
Less Water Lost.
Raixax handline nozzles are engineered to maximize water delivery efficiency by reducing stream breakup and premature water fallout. The result is a more coherent stream, improved reach, enhanced impact force, and superior firefighting performance.
From rapid response operations to high capacity industrial firefighting, Raixax provides the nozzle solution firefighters can trust when every drop matters.

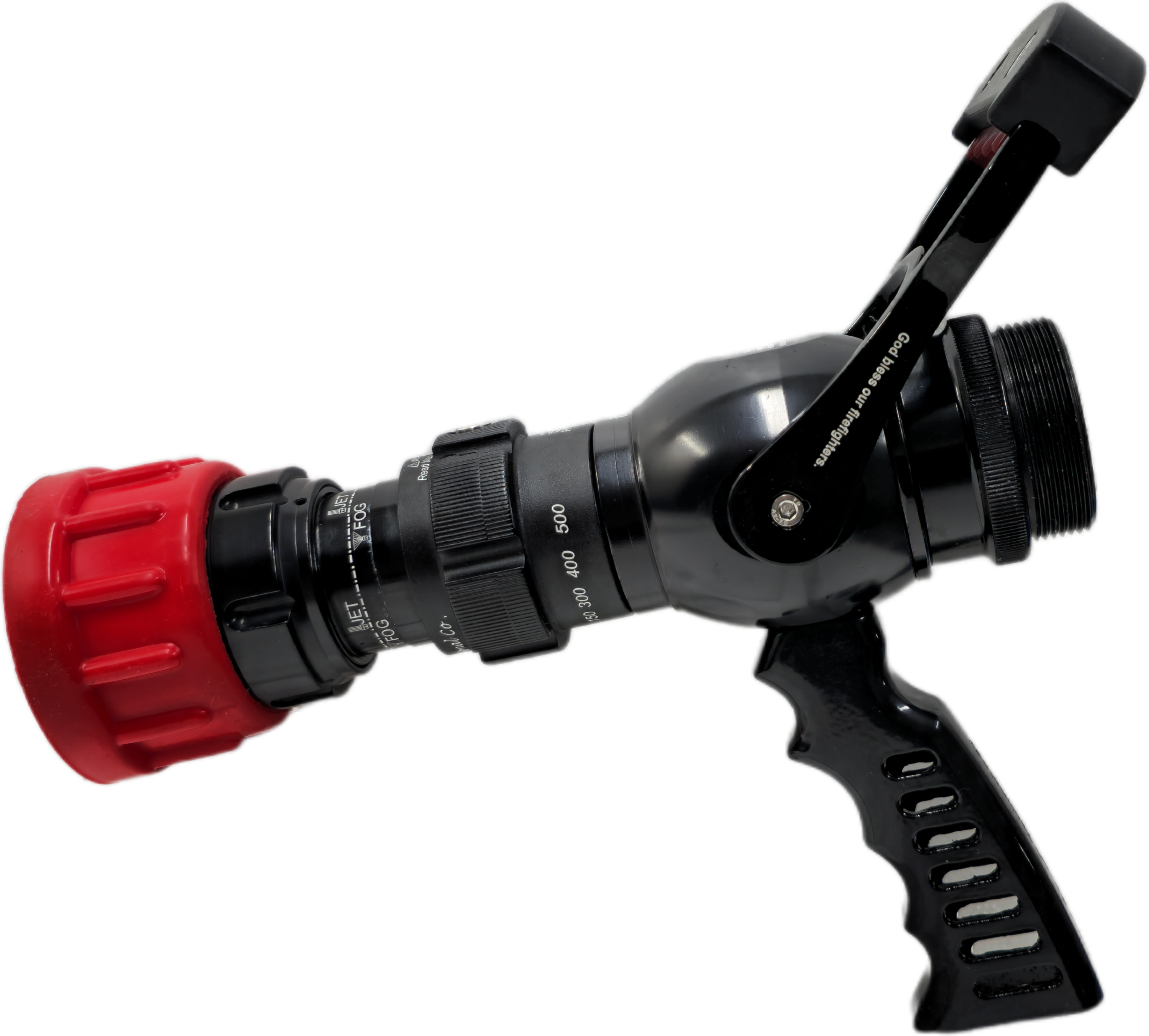

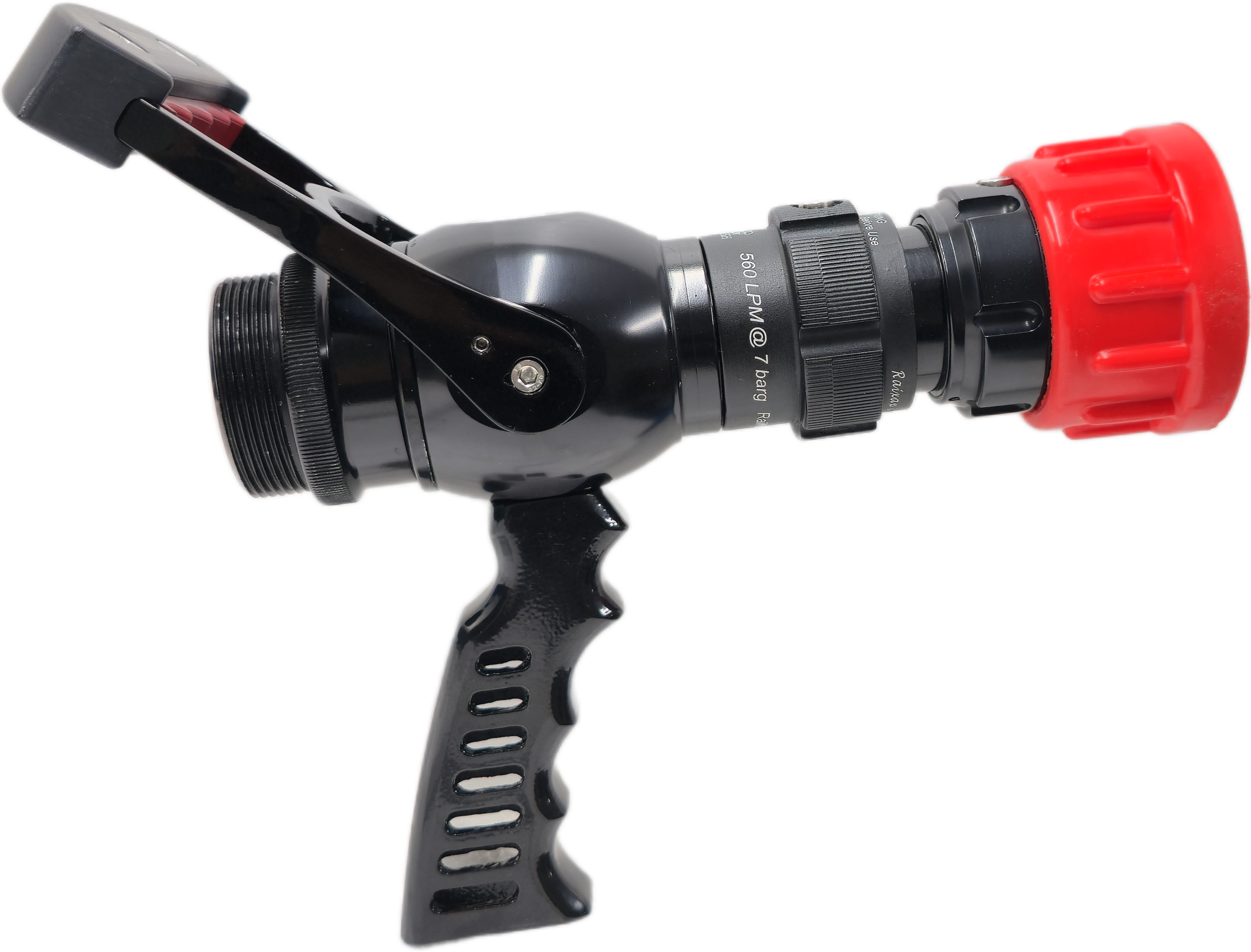

| Product Code | RXI-101321 |
| Model | RaiNova™ |

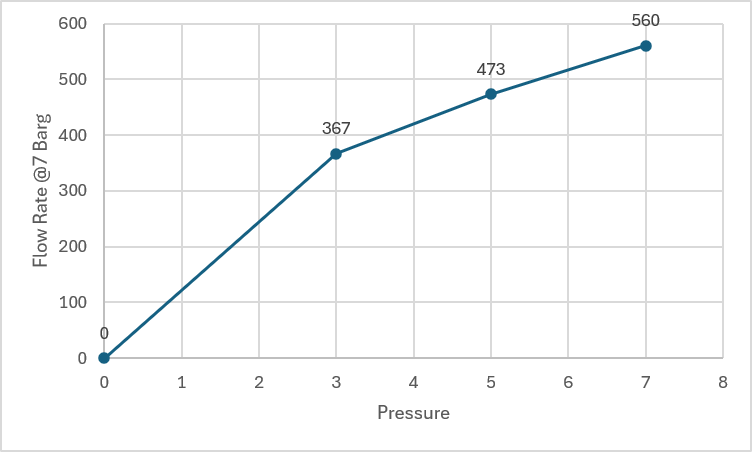

| Flow @7 Bar (LPM) | 150–560 ± 10 |

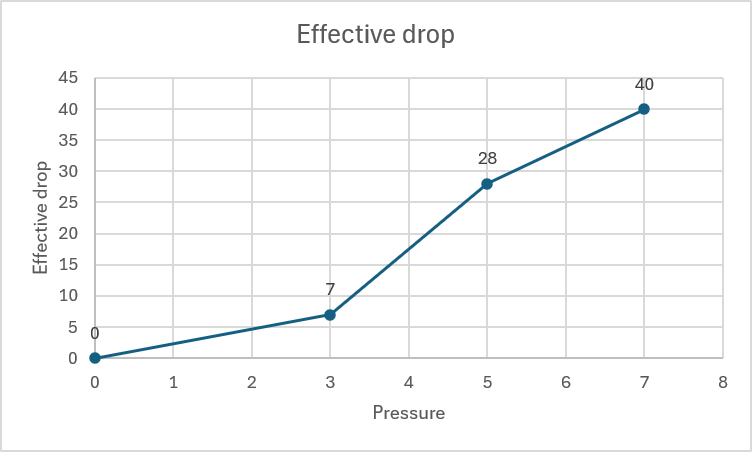

| Effective drop @7 Bar | 40 meters |
| FOG curtain Width @7Bar | R =1.5 meters L=1.5 meters |
| Inlet | 2” BS & Storz Standard |
| Flow Control | Adjustable |

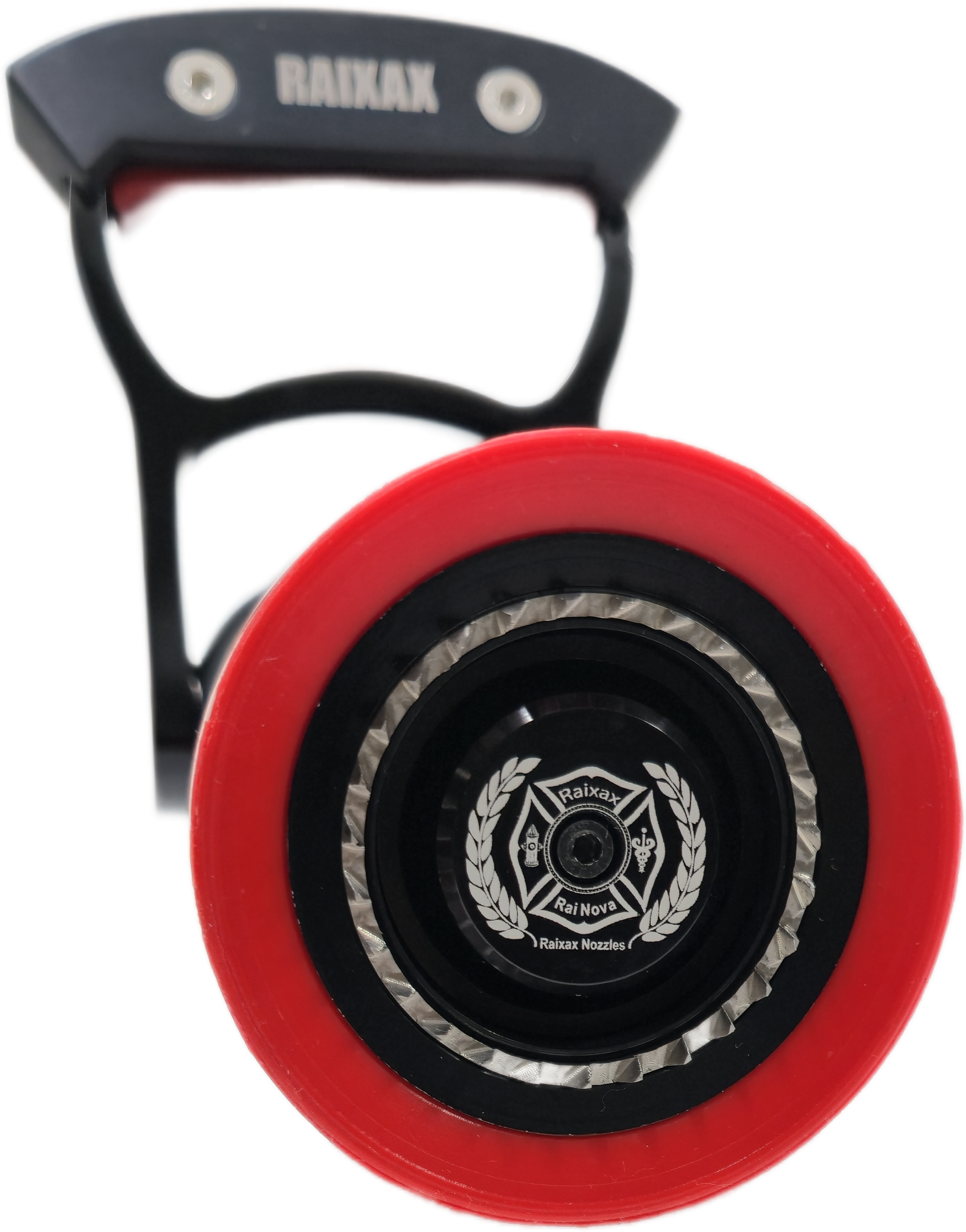

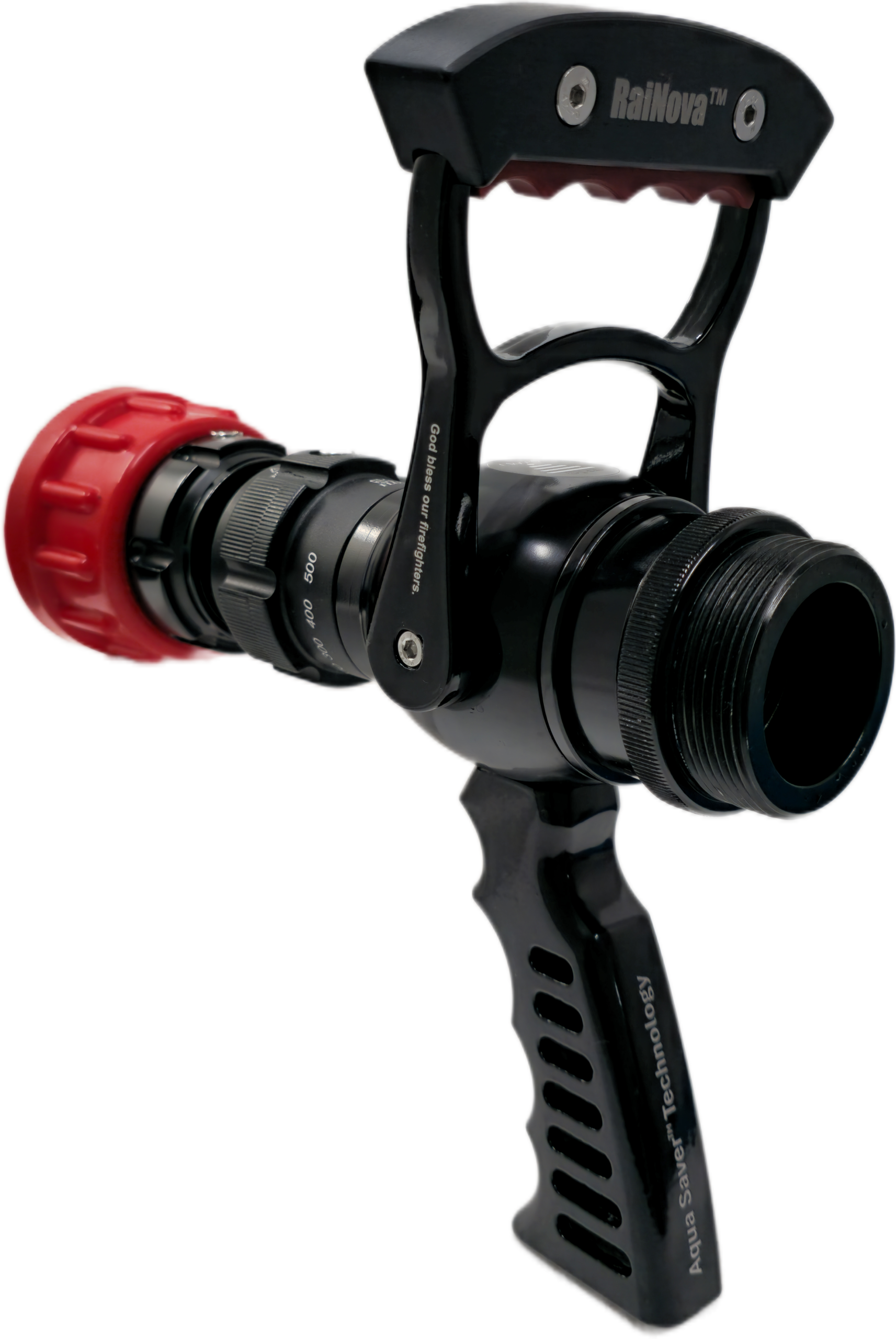

RaiNova™ is a 2″ handline nozzle designed for controlled and effective firefighting operations, providing a flow range of 150–560 LPM.
Powered by RAIXAX’s Aqua Saver™ Technology, RaiNova™ is designed to help maintain stream integrity and deliver water more effectively toward the fire. Its stainless steel spinning tooth supports effective fog formation and control, providing reliable performance for demanding handline firefighting applications. Designed for professional firefighters, RaiNova™ combines controlled water delivery, durable construction, and practical handling in a professional 2″ handline nozzle.
| Product Code | RXI-101322 |
| Model | RaiStorm™ |
| Flow @7 Bar (LPM) | 1350 ± 20 |
| Effective drop @7 Bar | 65 meters |
| FOG curtain Width @7Bar | R =3 meters L=3 meters |
| Inlet | 2½” BS & Storz Standard |
At flow rates of up to 1350 LPM, every improvement in stream performance matters. Aqua Saver™ Technology helps maintain stream integrity over extended distances, allowing more water to reach the fire and less water to be lost before impact. Over the course of a firefighting operation, this can translate into thousands of liters of water delivered more effectively where it is needed most on the fire. The stainless steel spinning tooth supports effective fog formation and helps maintain consistent water distribution throughout the operating range.

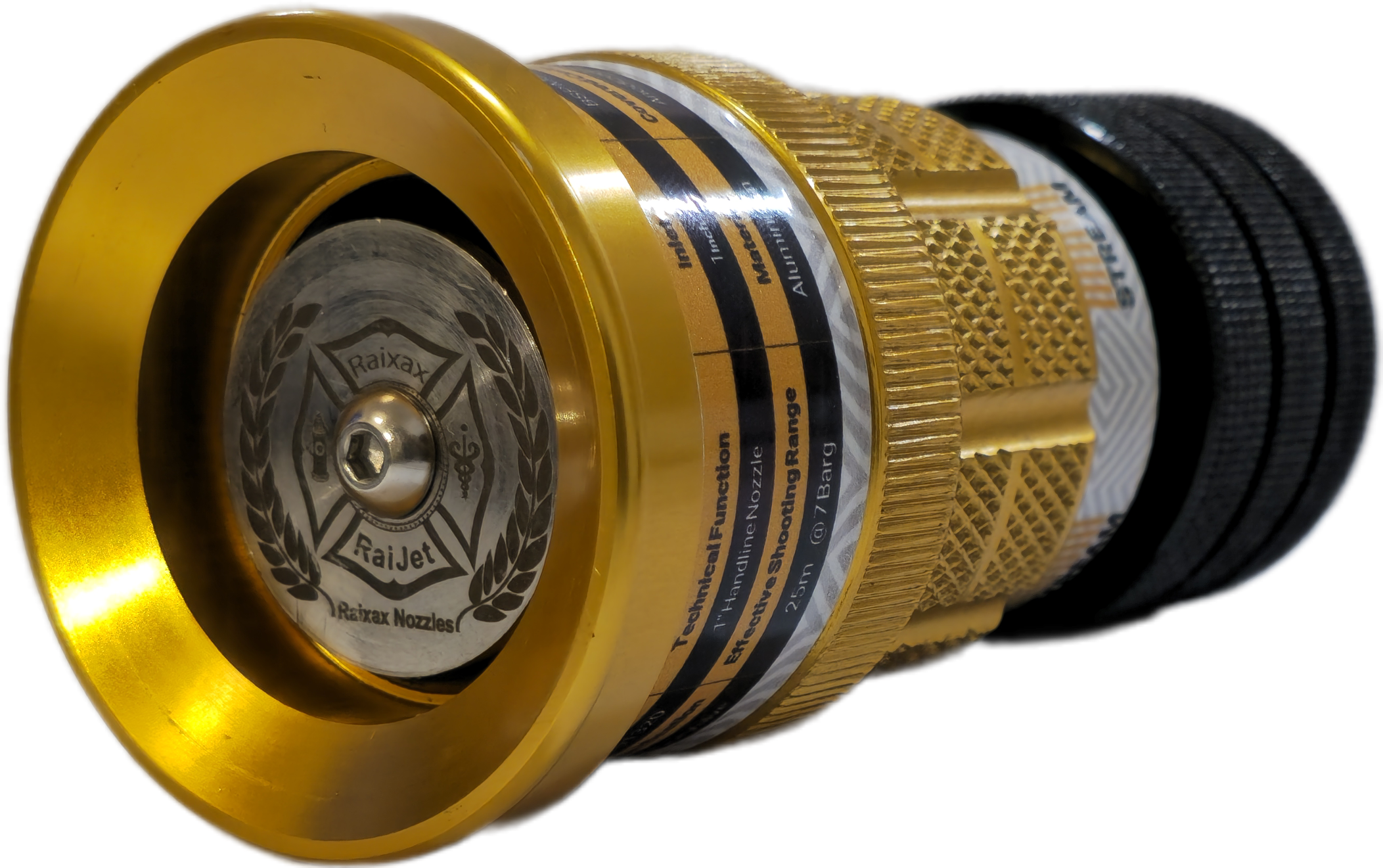

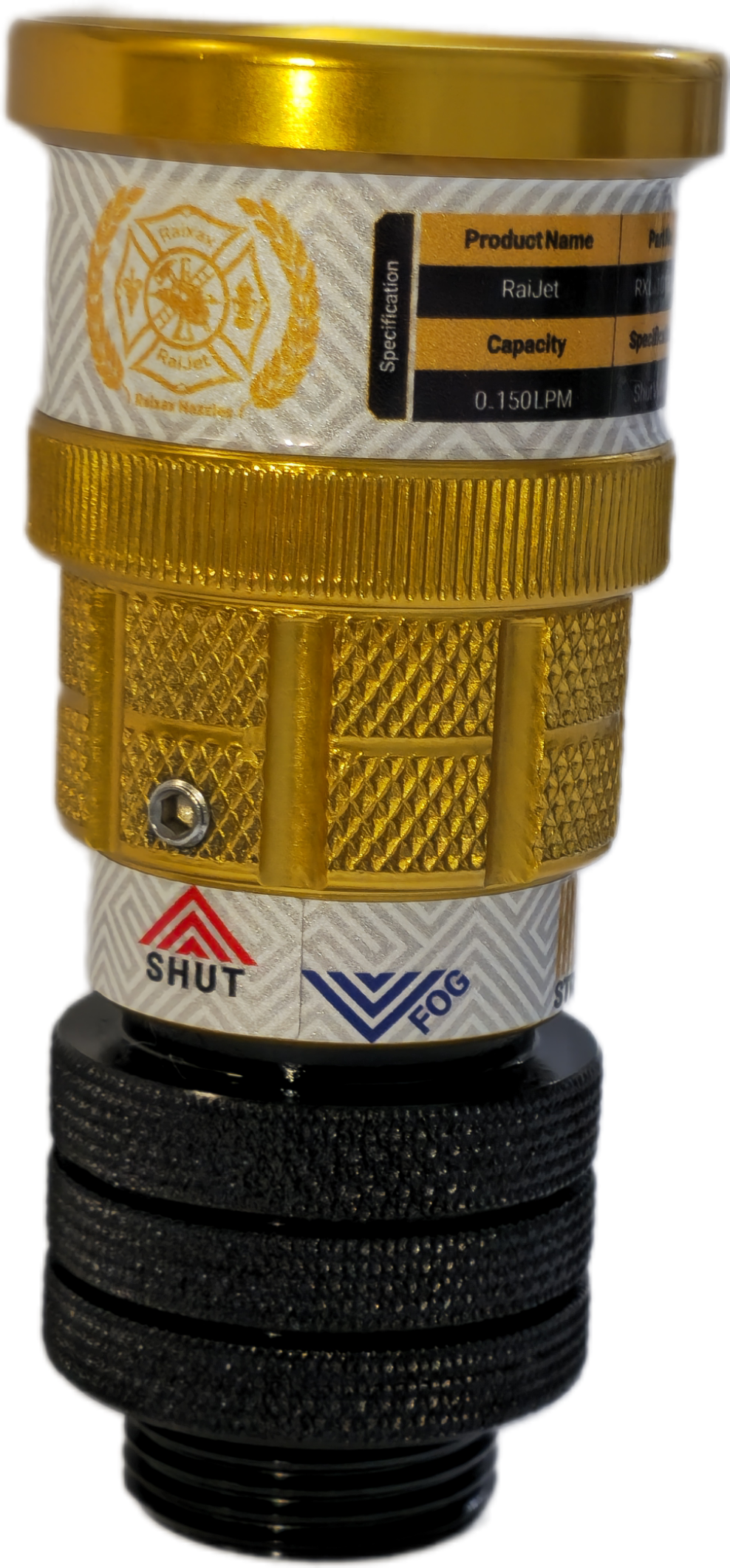

| Product Code | RXI-101320 |
| Model | RaiJet |

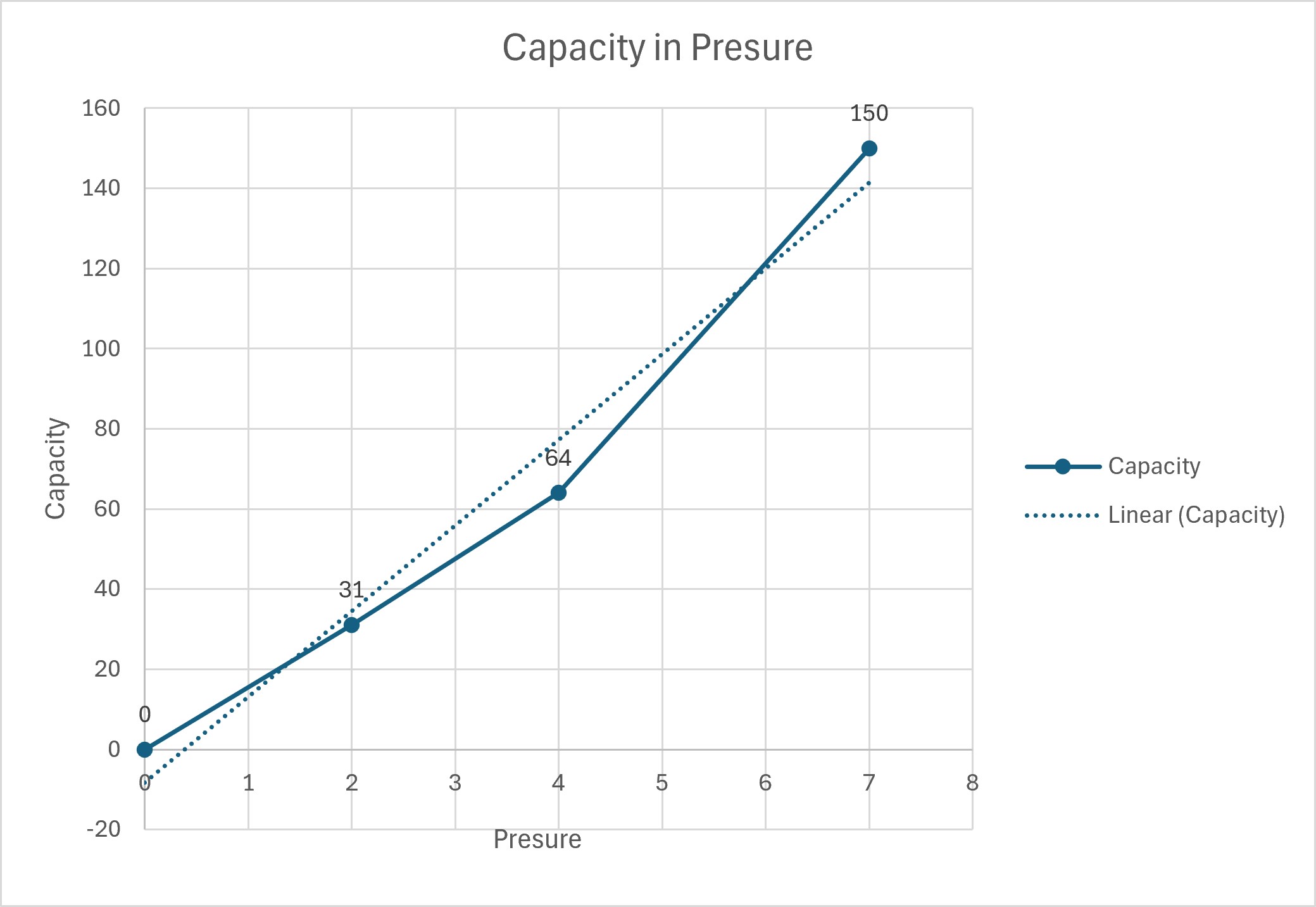

| Flow @7 Bar (LPM) | 150 ± 5 |

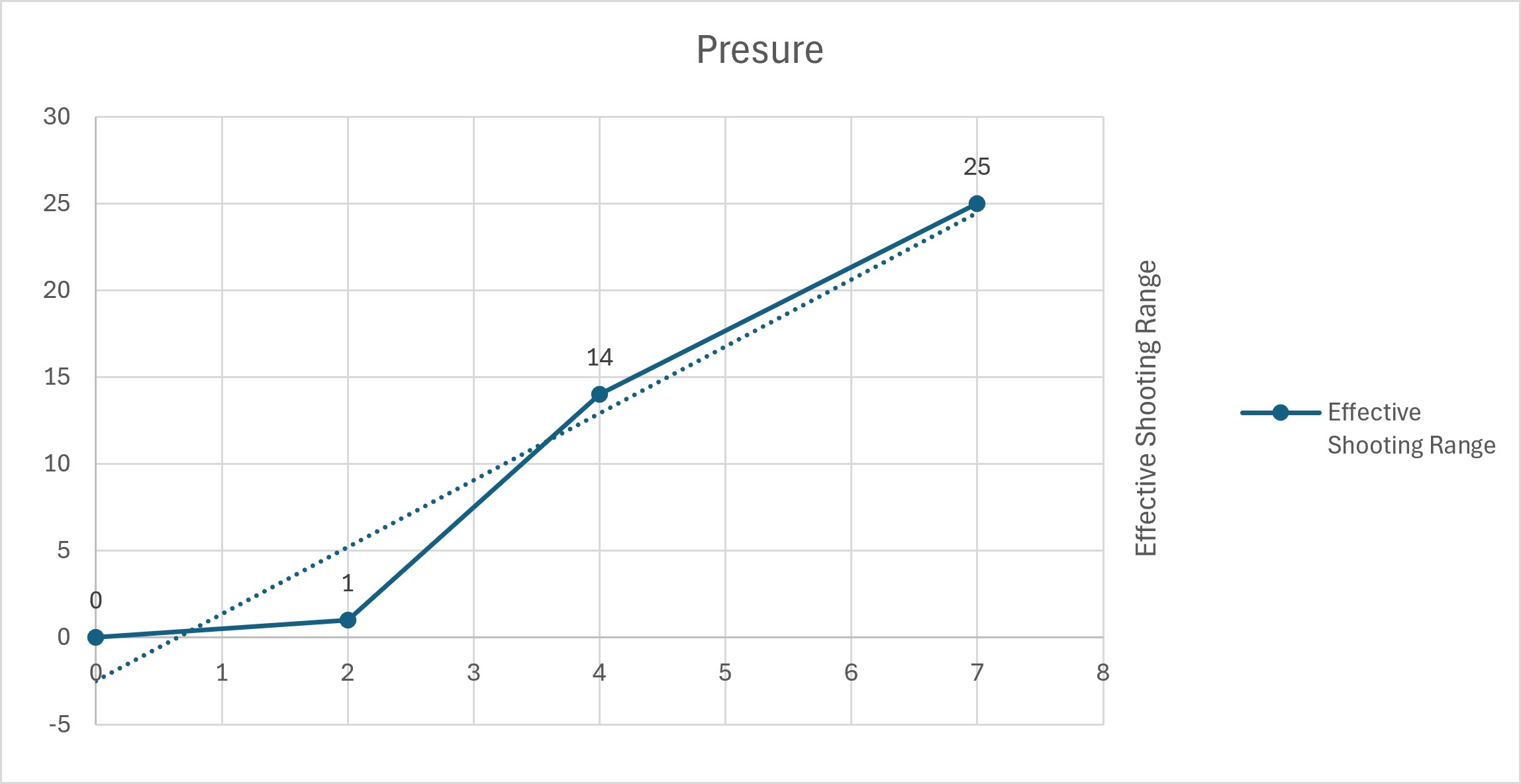

| Effective drop @7 Bar | 25 meters |
| FOG curtain Width @7Bar | R =1 meters L=1.5 meters |
| Inlet | 1” BS & Storz Standard |
This nozzle, delivering a flow rate of 150 LPM, is engineered with Aqua Saver™ Technology to maximize firefighting efficiency while minimizing water consumption. The advanced internal flow design ensures a smooth, controlled, and uniform water stream, providing effective coverage and stable performance during critical operations. Despite its compact size, this nozzle delivers outstanding performance, proving that small dimensions do not limit real operational power. The integration of a compact hydraulic structure with Aqua Saver flow optimization enhances water utilization efficiency, reduces wastage, and gives the operator superior control in demanding environments. Designed for rapid response scenarios where precision, efficiency, and reliability are essential, this nozzle offers a perfect balance between compact design and high impact firefighting performance.

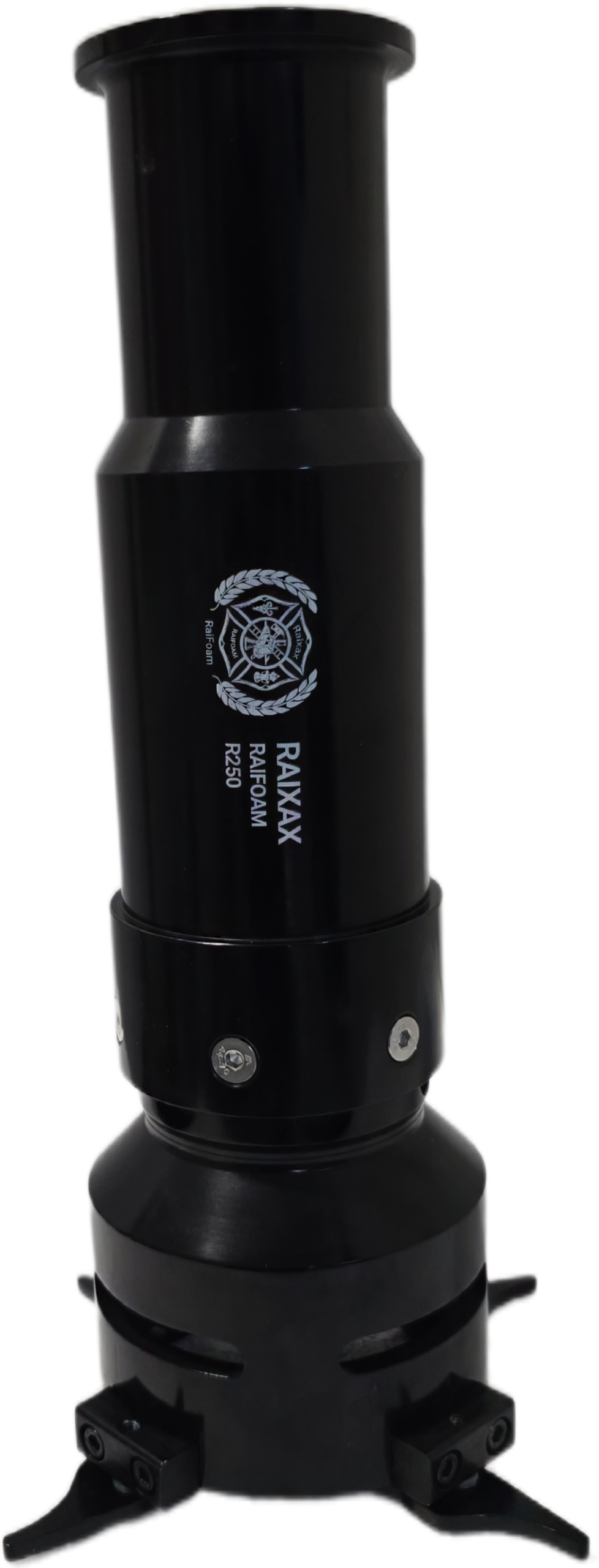

| Product Code | RXI-101324 |
| Model | R250- Aspirating Foam Attachment |
| Compatible Nozzle | 2½” Firefighting Nozzle |
| Foam Generation | Air Aspirating |
| Installation | Direct Attachment |
Inlet size | 100 mm ± 0.2 |
Application | Firefighting Foam Operations |
| Flow Rate | Up to Nozzle capacity |
| Foam Expansion Ratio | Low Expansion |
| Weight | 1200 ± 50 g |

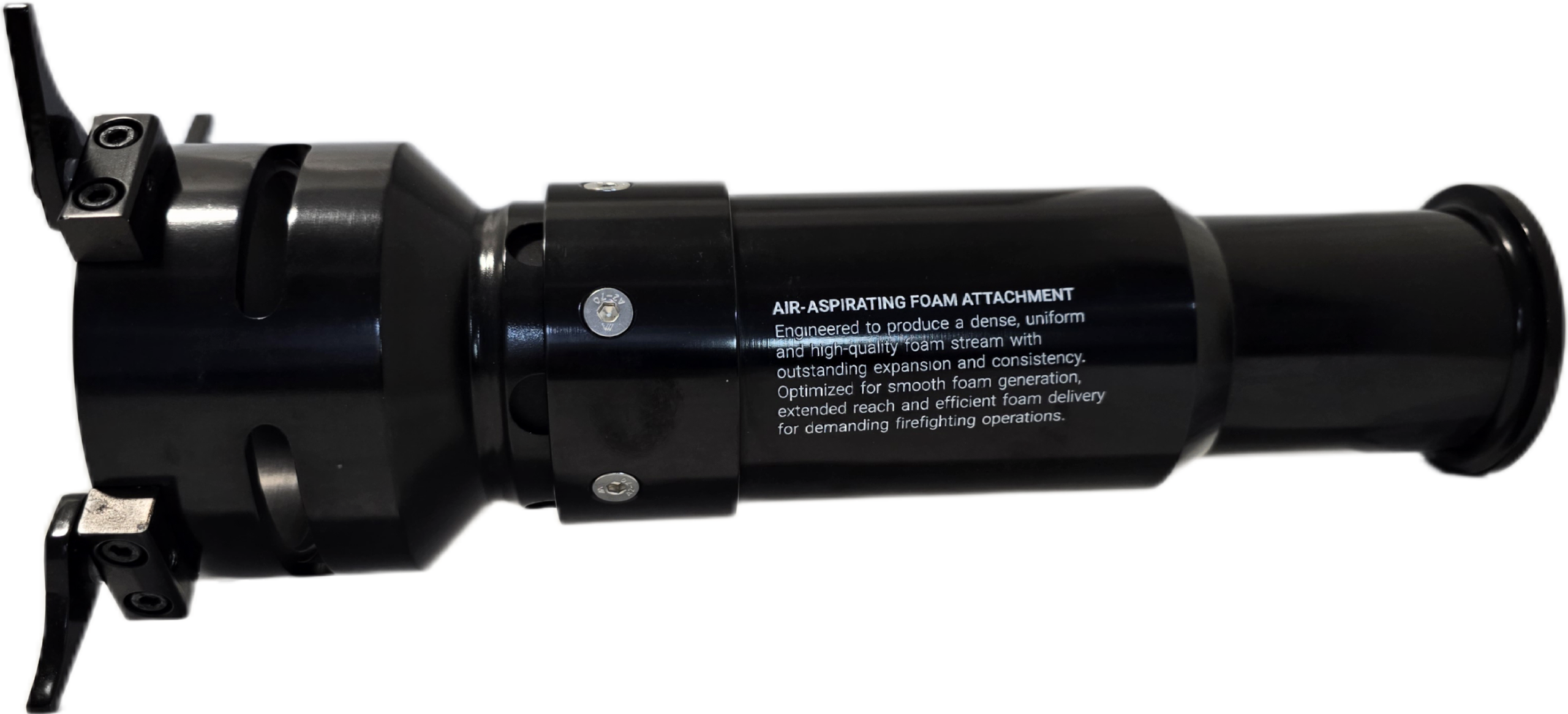

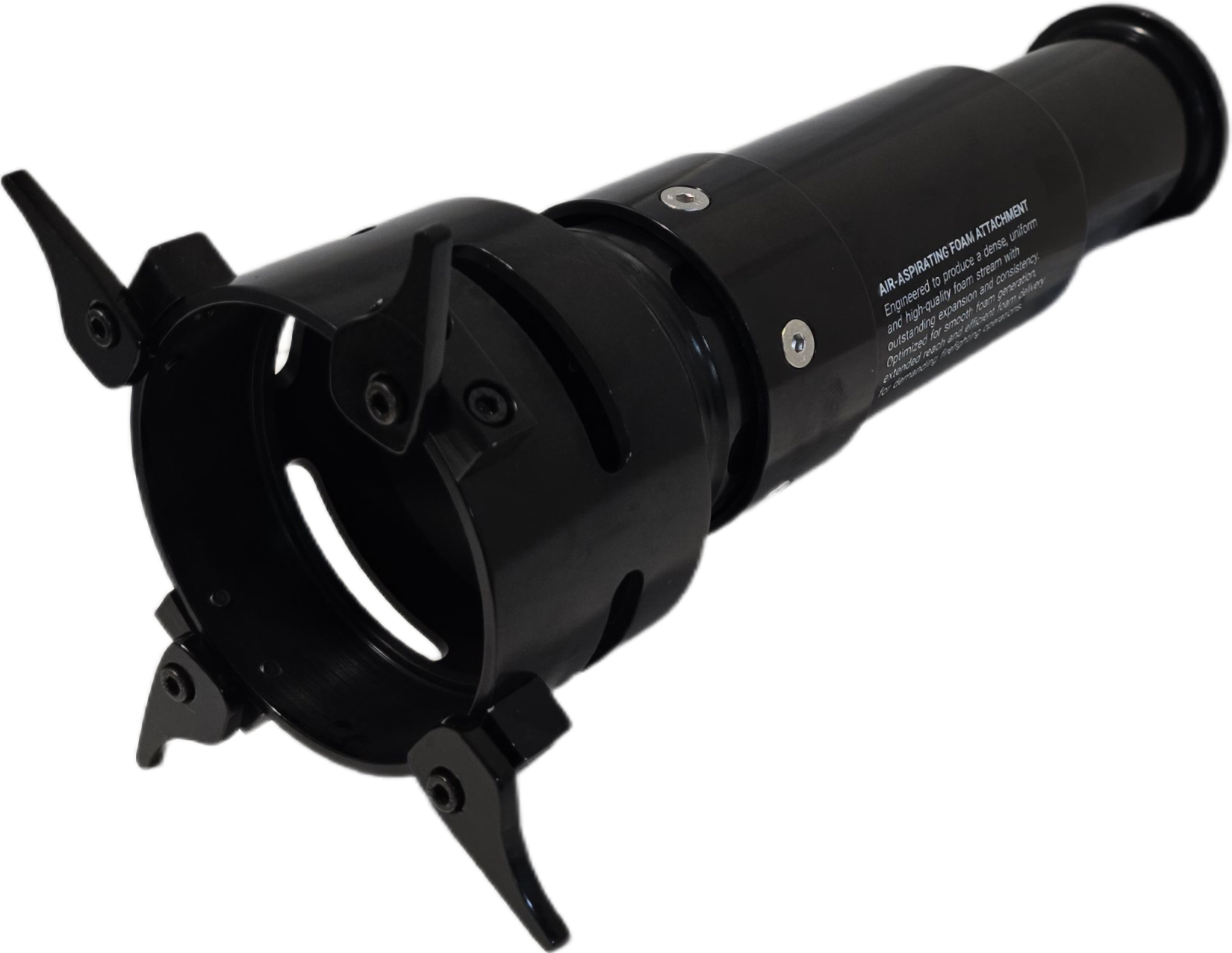

Air Aspirating Foam Attachment for 2½” Firefighting Nozzles
The RAIXAX R 250™ is an air-aspirating foam attachment designed for use with 2½” firefighting nozzles. It converts a compatible water/foam stream into an air aspirated foam discharge, producing a more expanded and consistent foam stream for demanding firefighting applications.Engineered for efficient foam generation, the R 250™ promotes effective air entrainment and uniform foam expansion while maintaining a practical flow path through the attachment.The R 250™ is designed for rapid installation on compatible 2½” nozzles, providing firefighters with a flexible solution for foam operations without requiring a dedicated foam nozzle.Its robust construction and secure attachment system are designed to withstand demanding firefighting environments and provide reliable performance during emergency operations.
Turn Your Nozzle Into a Foam Solution !
