Master Stream Nozzle

Powered by Aqua Saver™ Technology

More Water on Target.
                     Less Water Lost.

RAIXAX Master Stream Nozzles are engineered for high-capacity water delivery, providing a powerful, coherent stream with optimized reach and impact. Designed for monitor-mounted applications, they deliver efficient water performance where high flow rates, long-range reach, and reliable stream quality are essential.

From industrial fire protection to large-scale emergency response, RAIXAX Master Stream Nozzles provide the performance and control required when maximum water delivery matters.

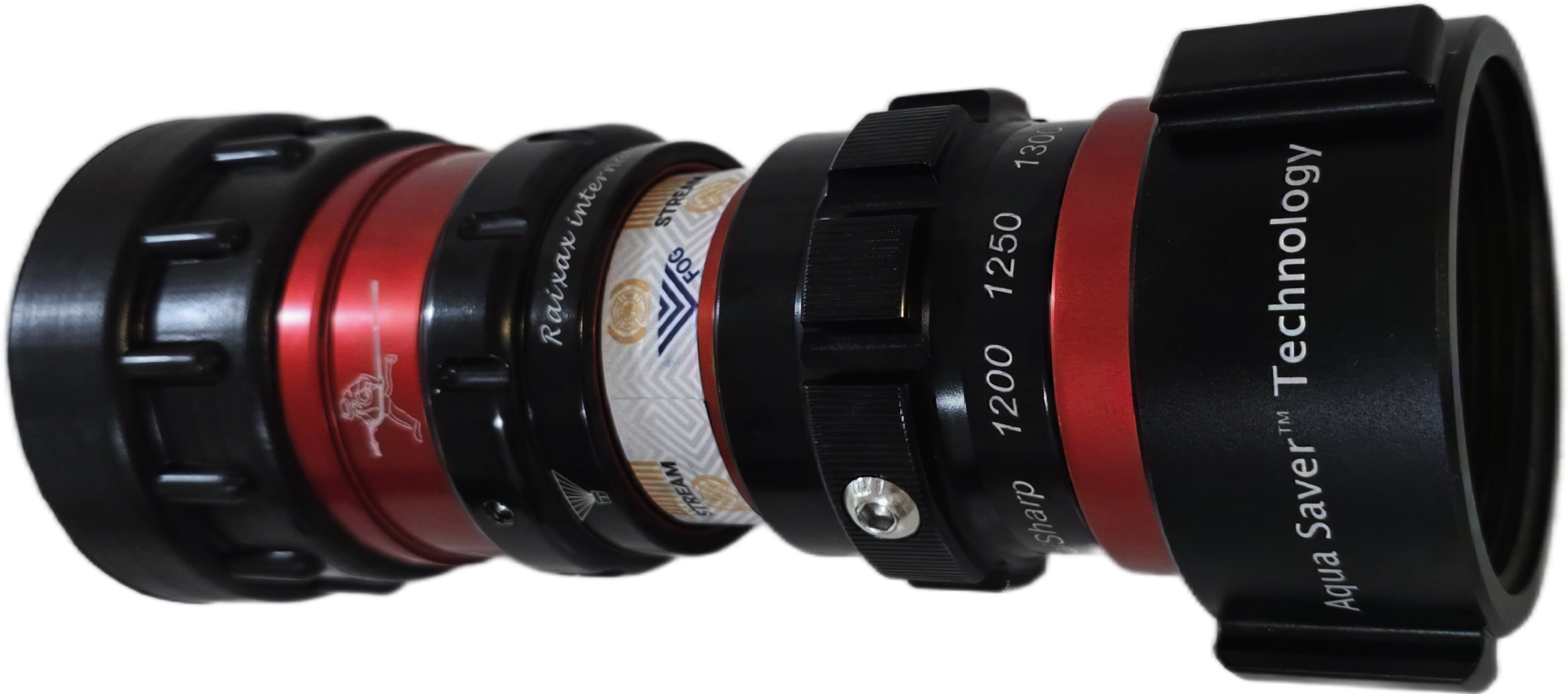

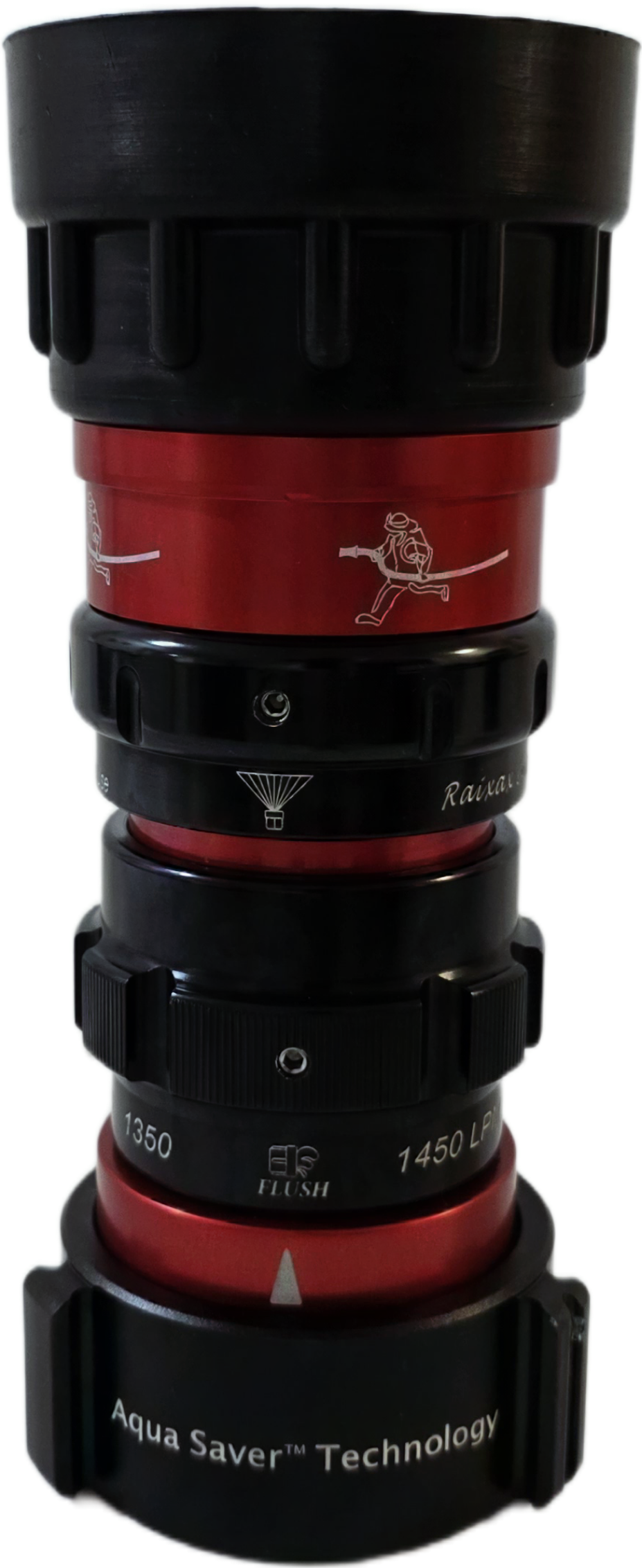

RaiSharp™ The Master of Stream Control

Product CodeRXI-101324
Model RaiSharp

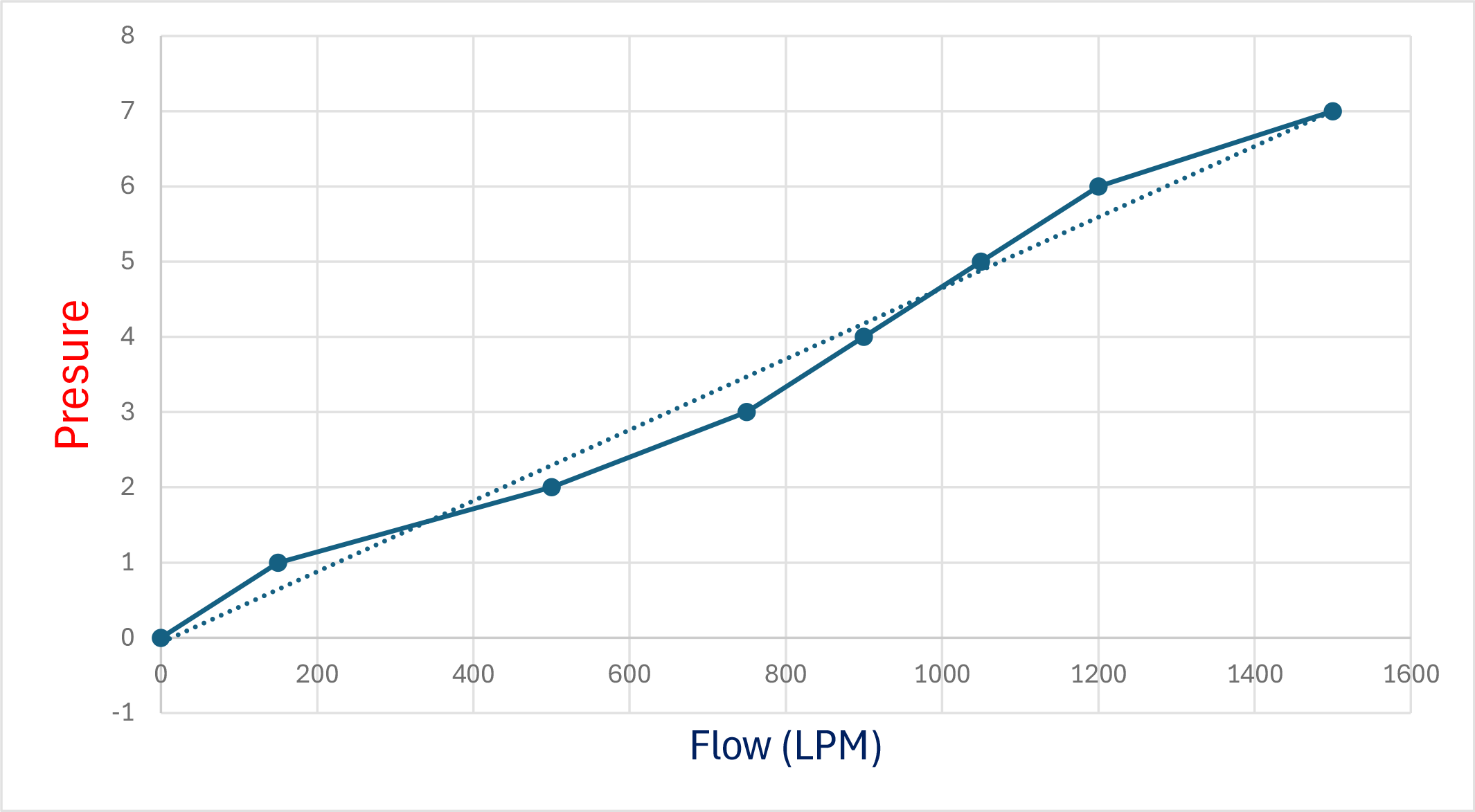

Flow @7 Bar (LPM)

1200 – 1500 ± 25

Effective drop @7 Bar 65 meters
FOG curtain Width @7BarR =3 meters
L=3 meters
Inlet2½”  NH

With adjustable flow rates from 1200  to 1500 LPM, RaiSharp™ is engineered to deliver high capacity water flow with precision and control. Its monitor mounted design provides a powerful, coherent stream with the reach and impact required for demanding firefighting operations, helping deliver more water effectively where it matters most. From industrial fire protection to large scale emergency response, RaiSharp™ combines high flow performance, precise adjustment, and dependable stream control to meet the demands of modern firefighting

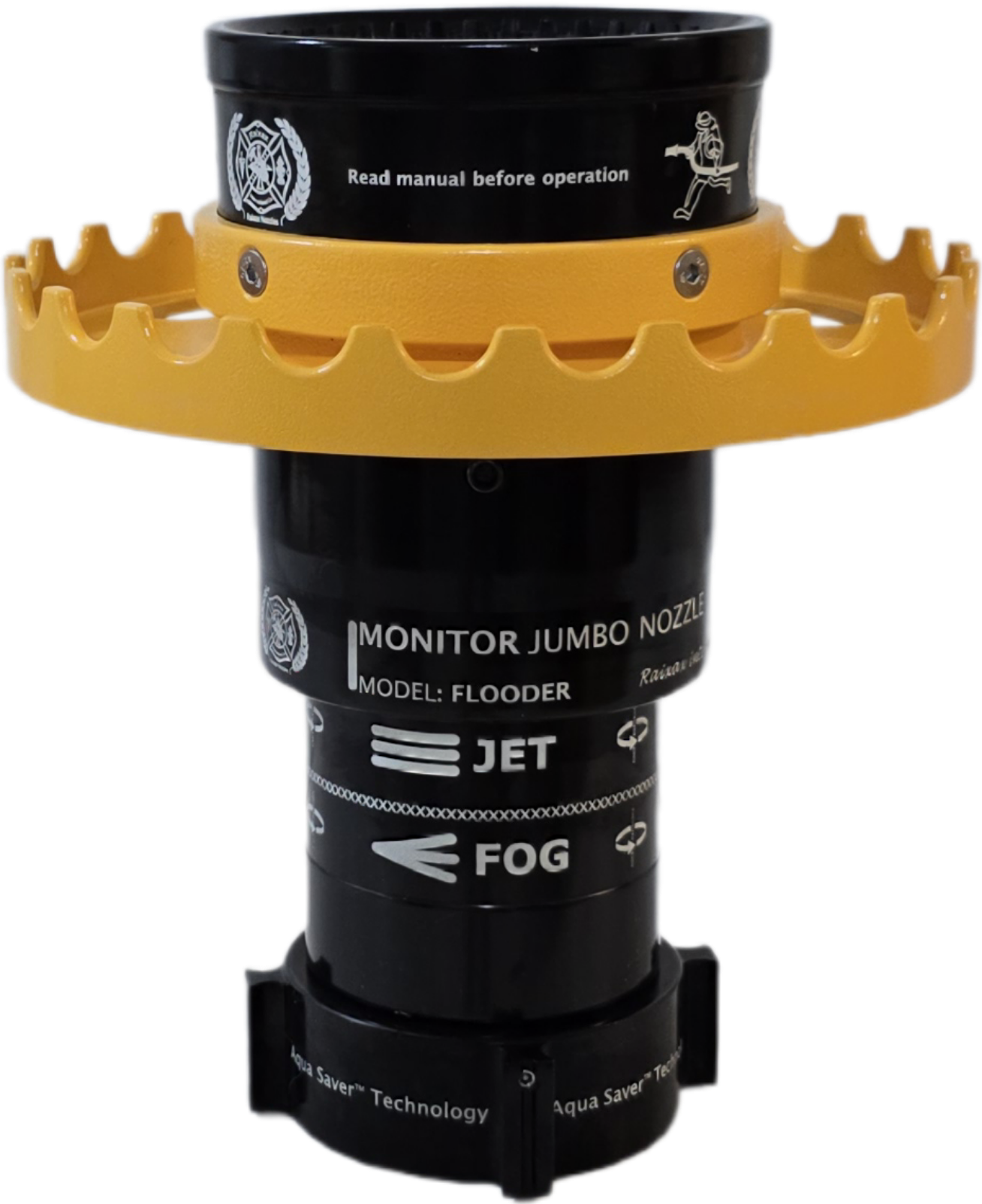

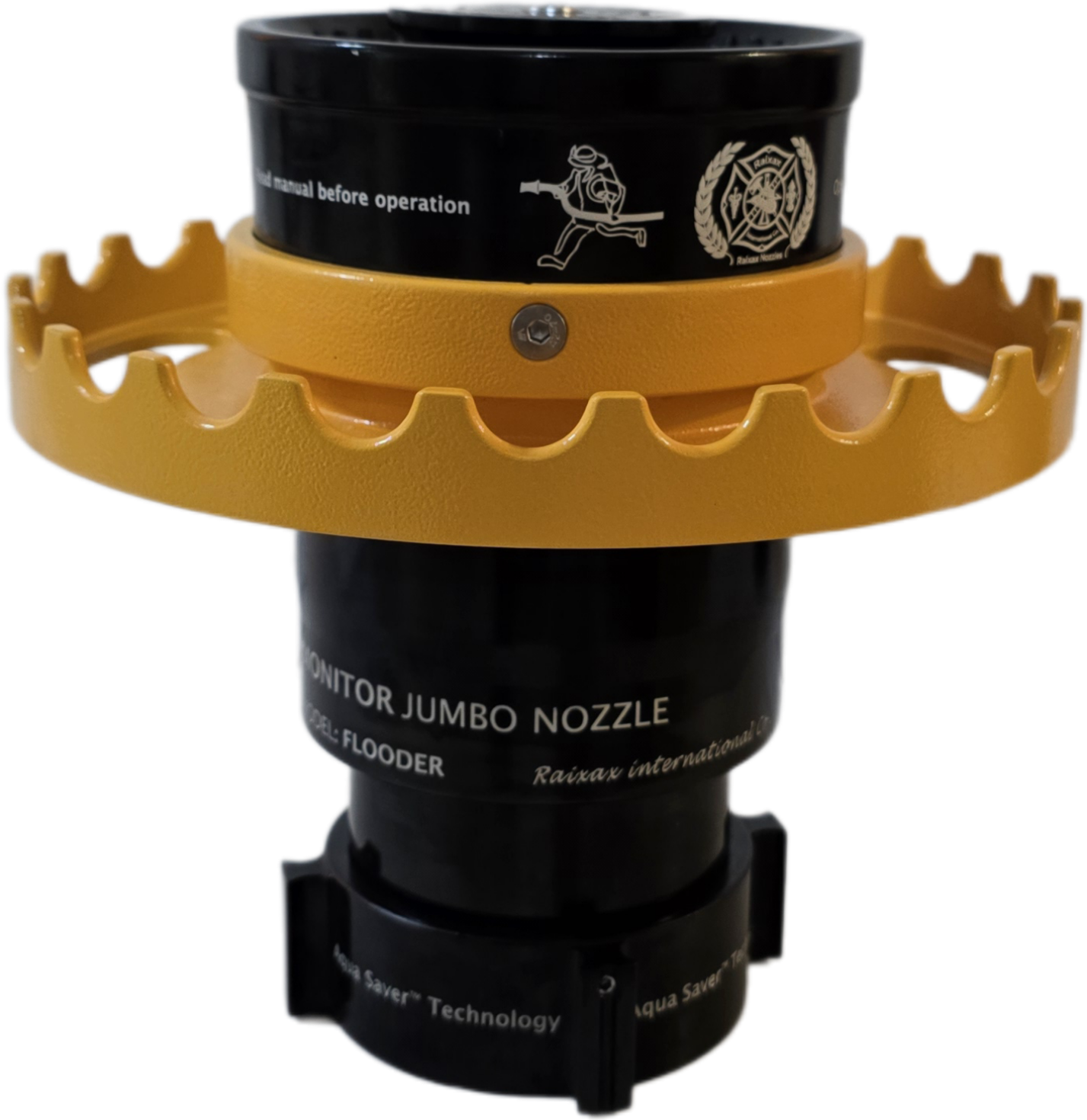

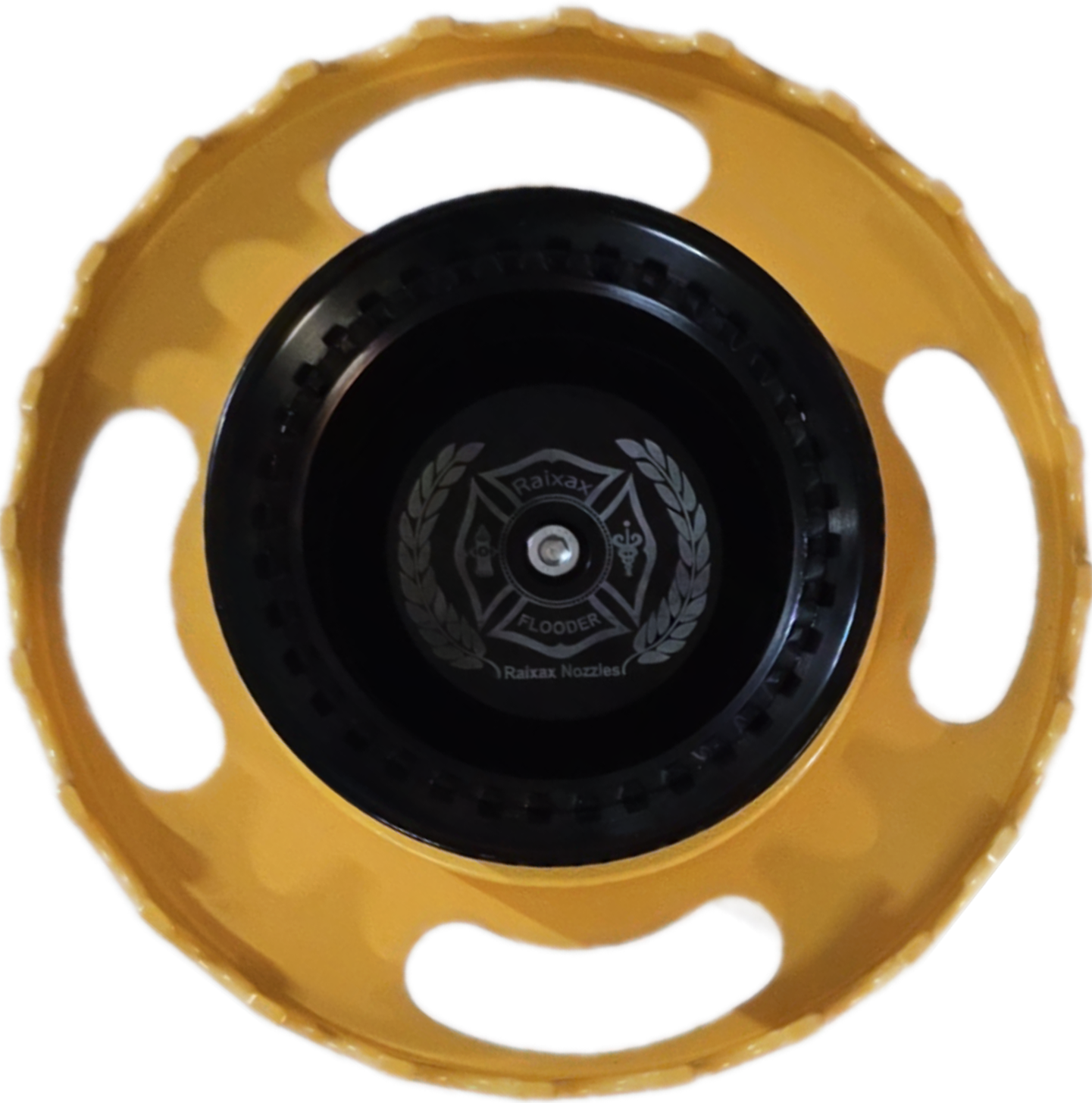

Flooder™ High Flow and Strong Performance



Product CodeRXI-101325
Model Flooder

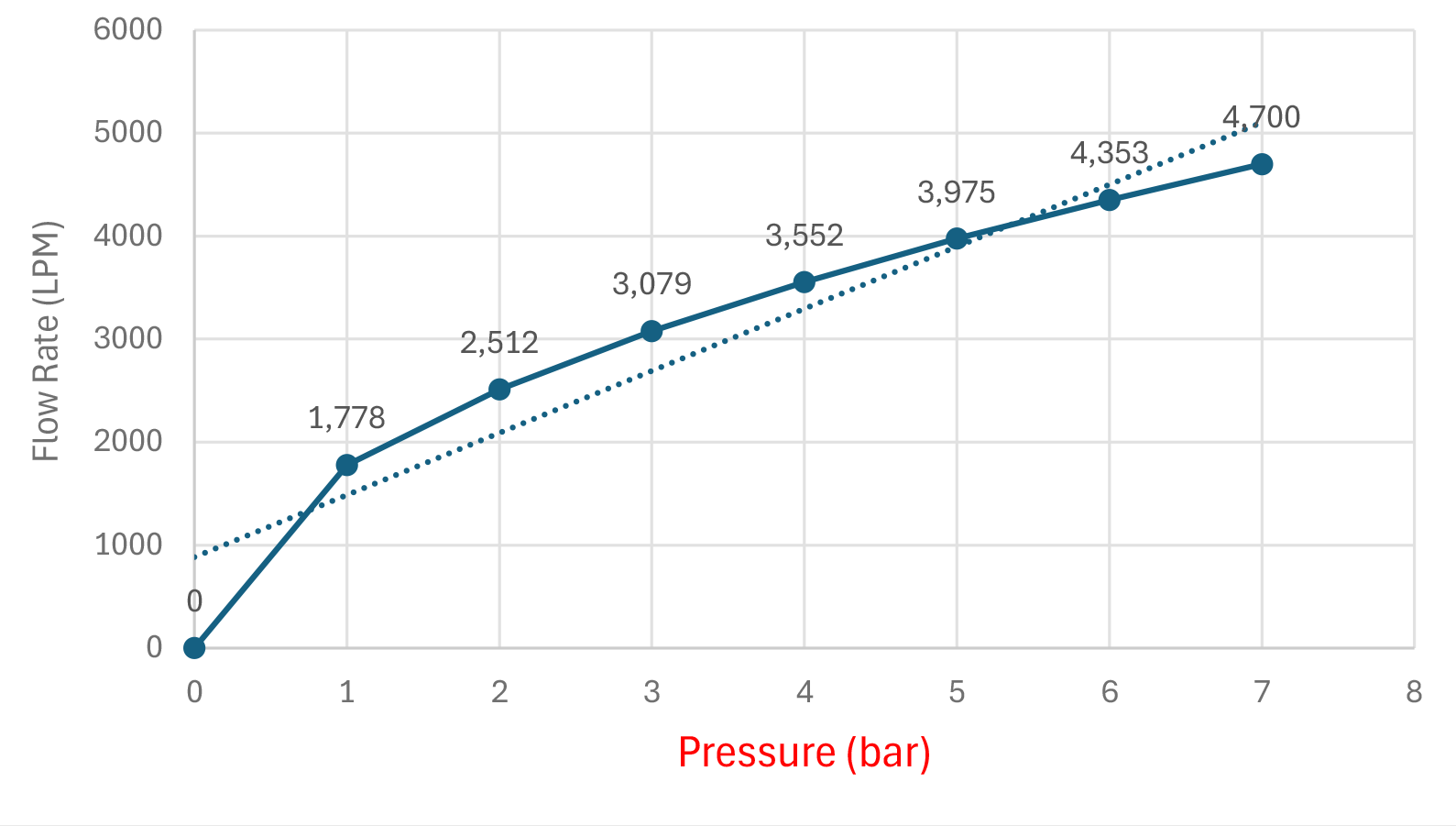

Flow @7 Bar (LPM)

4700± 30

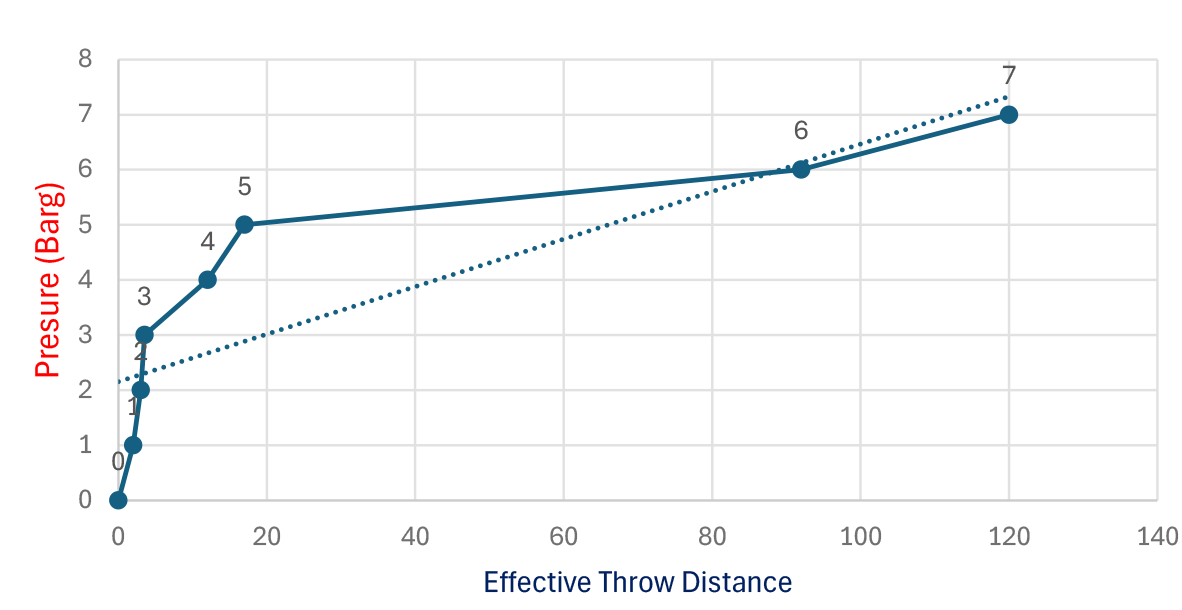

Effective drop @7 Bar 120 meters
FOG curtain Width @7BarR =4 meters
L=4.5meters
Inlet3” NH

Flooder™ delivers a high flow performance of up to 4,700 LPM, engineered to provide powerful and consistent water delivery for demanding firefighting operations. Featuring Aqua Saver™ Technology, its advanced internal flow design optimizes water movement through the nozzle, helping maintain stream integrity, improve water utilization, and reduce unnecessary flow losses.

Designed for high-capacity fire monitors, Flooder™ produces a stable and controlled water stream with efficient hydraulic performance, supporting effective reach and coverage across a wide range of firefighting applications. Its optimized flow path ensures smooth water passage and reliable operation, even under demanding conditions.

By combining high flow capability with Aqua Saver™ Technology, Flooder™ delivers the water where it is needed most providing dependable performance, efficient water utilization, and precise control during critical firefighting operations.

Infinity™ High Flow and Productive Foam



Product CodeRXI-101327
Model Infinity
Flow @7 Bar (LPM)

3,785± 30

Effective drop @7 Bar 90 meters
FOG curtain Width @7BarR =4 meters
L=4.5meters
Inlet3” NH

Infinity™

24V Electric Foam Monitor Nozzle

Powerful Reach. Electric Precision. Versatile Performance.

Infinity™ is a high-capacity, electrically operated foam monitor nozzle engineered for demanding firefighting operations. Operating on a 24V electrical system, it combines powerful discharge performance with convenient electric control and exceptional versatility. With a maximum flow capacity of 1,000 GPM (3,785 LPM) and a jet reach of up to 90 meters, Infinity™ delivers the performance required for large scale fire suppression applications. Constructed from high strength aluminum alloy, Infinity™ features a black hard-anodized finish for enhanced surface durability and resistance to demanding operational environments. Despite its high capacity performance, its lightweight construction keeps the total weight to just 4.9 kg. Designed for dual purpose operation, Infinity™ can operate independently with water or with water and foam solution, providing flexibility for different firefighting requirements. Featuring a 3 inch inlet connection and a 24V electric operating system, Infinity™ brings together high discharge capacity, lightweight construction, and electric control in one advanced firefighting solution.

SpecificationDetails
Product NameInfinity™
Product TypeElectric Foam Monitor Nozzle
Electrical System24V DC
Maximum Flow Rate1,000 GPM (3,785 LPM)
Maximum Jet ReachUp to 90 m
Inlet Connection3 inch
Body MaterialAluminum Alloy
Surface FinishBlack Hard Anodized
Operating Media Water & Foam Solution
Weight4.9 kg

Rebeler™ Amazing performance and Strong Control



Product CodeRXI-101328
Model Rebeler
Flow @7 Bar (LPM)

3,785± 30

Effective drop @7 Bar 90 meters
FOG curtain Width @7BarR =4 meters
L=4.5meters
Inlet2-1/2” NH

Rebeler™

24V Electric Water Monitor Nozzle

Powerful Reach. Electric Precision. Lightweight Performance.

Rebeler™ is a high capacity, electrically operated water monitor nozzle engineered for demanding firefighting operations. Powered by a 24V DC electrical system, it combines high discharge performance with convenient electric control and a lightweight, durable construction. With a maximum flow capacity of 1,000 GPM (3,785 LPM) and a jet reach of up to 90 meters, Rebeler™ delivers powerful water discharge for large scale fire suppression applications.Manufactured from high-strength aluminum alloy, Rebeler™ features a black hard-anodized finish that enhances surface durability and resistance to demanding operational environments. Despite its impressive discharge capacity, its lightweight design keeps the total weight to just 4.9 kg. Featuring a 2-1/2″ inch inlet connection and a 24V electric operating system, Rebeler™ offers a practical combination of high flow capacity, extended jet reach, and lightweight construction for professional firefighting applications.

High Flow. Extended Reach. Reliable Control.

SpecificationDetails
Product NameRebeler™
Product TypeElectric Monitor Nozzle
Electrical System24V DC
Maximum Flow Rate1,000 GPM (3,785 LPM)
Maximum Jet ReachUp to 90 m
Inlet Connection2-1/2″ inch
Body MaterialAluminum Alloy
Surface FinishBlack Hard Anodized
Operating MediaWater Solution
Weight4.9 kg

Master™ Durability and Resistance.



Product CodeRXI-101329
Model Master
Flow @7 Bar (LPM)

2,840± 30

Effective drop @7 Bar 80 meters
FOG curtain Width @7BarR =4 meters
L=4.5meters
Inlet2-1/2” NH

MASTER™

Electrically Operated Foam Firefighting Nozzle

Designed for high capacity firefighting operations, MASTER™ is an electrically operated foam firefighting nozzle engineered to deliver a powerful foam stream with an effective reach of up to 80 meters. With a rated flow capacity of 750 GPM (approximately 2,840 LPM), this nozzle provides high volume foam delivery for demanding industrial and emergency firefighting applications. Its 24V electrical operating system enables electrically controlled operation, while its hard-anodized aluminum construction provides durability and corrosion resistance.

SpecificationDescription
Product NameMASTER™
Product TypeElectrically Operated Foam Firefighting Nozzle
Flow Capacity750 GPM / Approx. 2,840 LPM
Throw RangeUp to 80 m
Inlet Size2-1/2″
Operating Voltage24V DC
Net Weight4.7 kg
Body MaterialHard Anodized Aluminum
Discharge PatternsJet / Fog
ApplicationWater&Foam Firefighting
